Configuring Liferay Authentication With Okta Using OpenId Connect (2024)

This tutorial guides you through the basic steps needed to integrate Okta, your Identity Provider (IdP), with your environment using OpenID Connect.

Prerequisites

• Okta Dev account
• Liferay DXP environment
• A user who has administrative access Okta Admin Console
• A user who has administrative access to Liferay’s Control Panel

Okta Configuration

1. Log in to Okta Dev and navigate to Applications → Add Application → Create App Integration.

2. Select OIDC - OpenID Connect, under Sign-in method, and Web Application, under Application type.



3. Enter Liferay DXP - OIDC as the app integration name.

4. For grant types, select Authorization Code and Refresh Token

5. Enter https://[your_instance_url]/c/portal/login/openidconnect for the sign-in redirect URIs.

6. Enter https://[your_instance_url] for the sign-out redirect URIs.

7. Under assignments, select Skip group assignment for now.

8. Click Save.

9. On the Assignments tab, assign users to this application.

   Note

   Make sure to assign yourself and provision your own user account so that you will still be able to log in as the Liferay administrator.

Obtaining endpoint URLs

1. In your Okta Dev account, go to the side panel and navigate to Security → API.

2. Under the “Authorization Servers” tab, locate the server named default and click on it to edit its configuration.



3. Click on the “Metadata URI” link, which typically looks like this: https://dev-123456.okta.com/oauth2/default/.well-known/oauth-authorization-server

    issuer: "https://dev-123456.okta.com/oauth2/default" authorization_endpoint: "https://dev-123456.okta.com/oauth2/default/v1/authorize" token_endpoint: "https://dev-123456.okta.com/oauth2/default/v1/token" registration_endpoint: "https://dev-123456.okta.com/oauth2/v1/clients" jwks_uri: "https://dev-123456.okta.com/oauth2/default/v1/keys"

4. This will give you the necessary URLs, with the exception of /userinfo endpoint. You can construct that endpoint by combining your base URL with the Auth Server name. For example: https://dev-123456.okta.com/oauth2/default/v1/userinfo.

Liferay OIDC Configuration

1. On your DXP instance, navigate to Global Menu → Control Panel → Instance Settings → Security → SSO.

2. Go to OpenID Connect Provider Connection tab and add a new connection entry.

3. Fill in the fields with the data you find at the endpoint URLs, as shown in the table below.

   Field	Data
   Provider Name	Okta OIDC
   Scopes	scopes_supported
   Authorization Endpoint	authorization_endpoint url
   Issuer URL	issuer url
   JWKS URI	jwks_uri url
   Subject Types	subject_types_supported
   Token Endpoint	token_endpoint url
   User Information Endpoint	Follow step 4 from obtaining endpoint URLs
   OpenID Connect Client ID	Under your application’s General tab in Okta
   OpenID Connect Client Secret	Under your application’s General tab in Okta

Once that is done, OpenID Connect needs to be enabled. To enable the OpenId Connect:

1. Navigate to Global Menu → Control Panel → Configuration → Instance Settings.

   See Also

   Okta and Firebox Mobile VPN with IPSec Integration Guide

2. Click on SSO under the security section.

3. Go to the OpenID Connect tab, click the Enabled checkbox and click Save.



Validation

1. Start your Liferay DXP instance

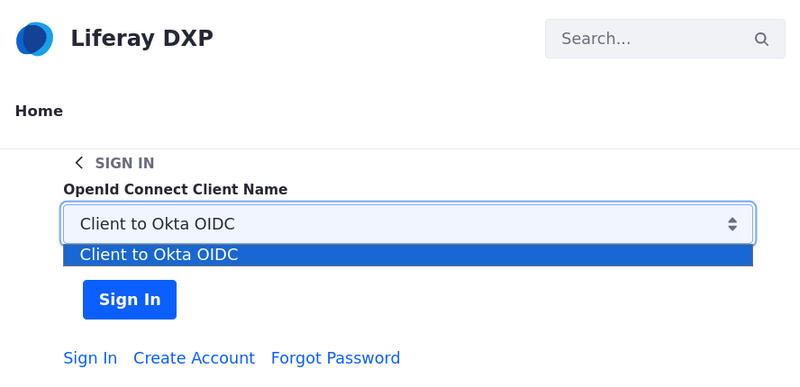

2. Click on the Sign In button and choose OpenId Connect.



3. Choose Client to Okta OIDC from the list.



4. Sign in with your Okta account.



Conclusion

Congratulations! You have successfully completed this Solution Tutorial.

Tips and Troubleshooting

Sign-in and Sign-out Redirect URIs

If you encounter an error like the image below, verify that your sign-in and sign-out redirect URIs are configured correctly in Okta with the appropriate path and Hypertext Transfer Protocol (HTTP or HTTPS). You can find them in your Dev Okta account by navigating to the application you created → General tab → General Setting → Login section.

Verify email address

By default, new users must verify their email address upon first login. To disable this requirement, in your Liferay DXP unselect the “Require strangers to verify their email address” checkbox. Navigate to Control Panel → Instance Settings → Platform → User Authentication and unselect the checkbox. However, if you want to keep email validation enabled, a configured connection to a mail server is necessary for your installation.
